Heavy-Duty Gang Reel Mower for Professional Turf Management

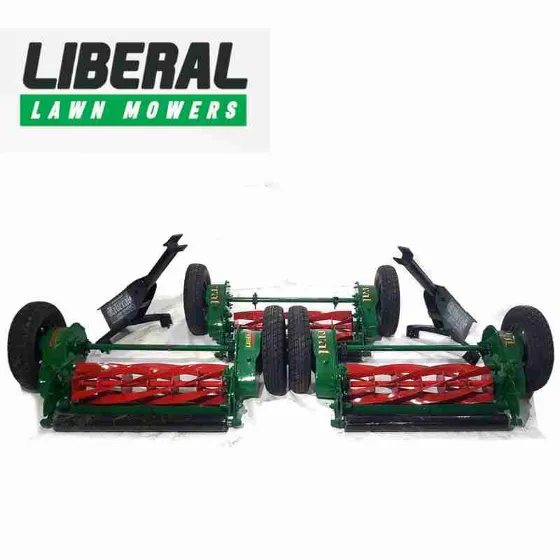

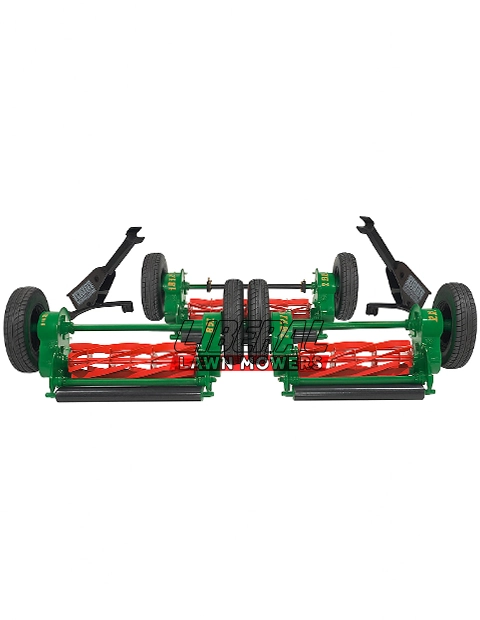

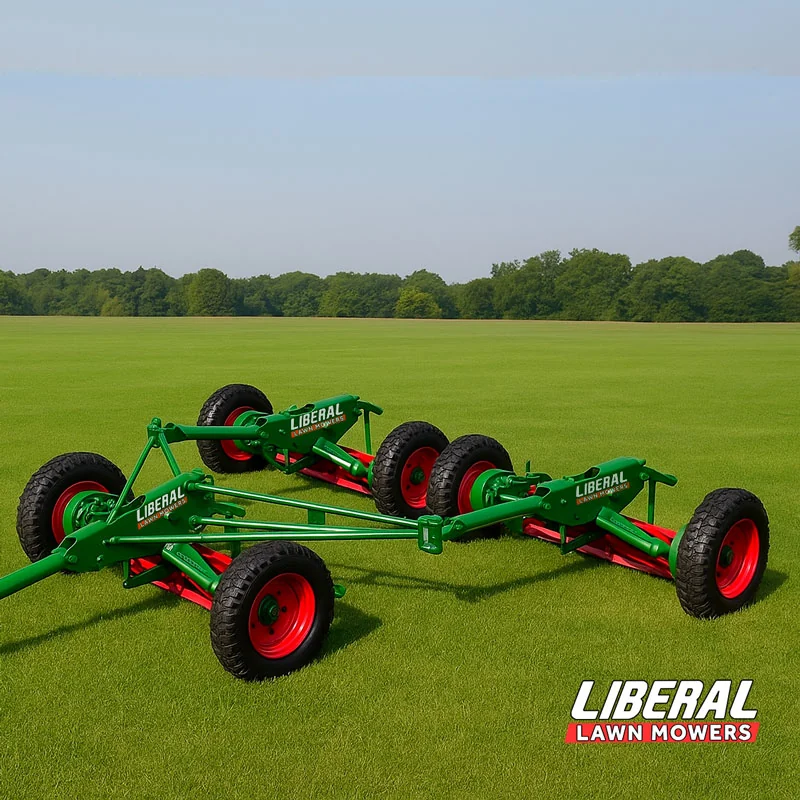

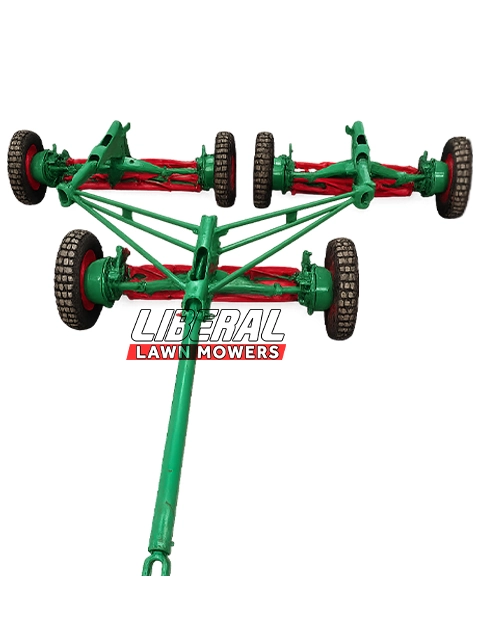

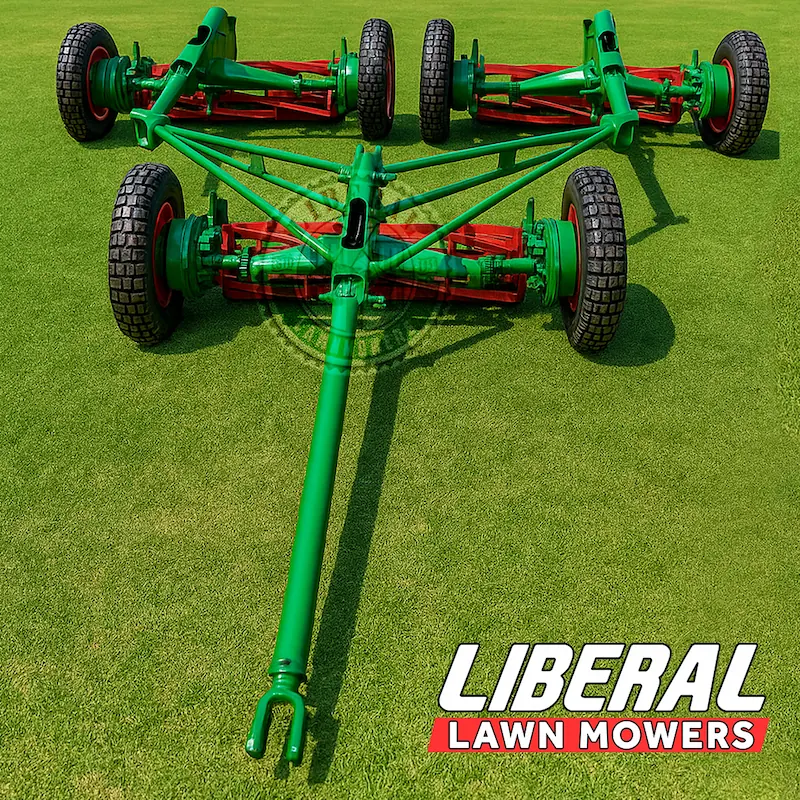

The Liberal 3-Unit Tractor Trailed Gang Reel Mower is engineered for precision, reliability, and large-area turf performance.
Designed for cricket grounds, golf courses, municipal parks, and estate lawns, this heavy-duty mower offers professional-grade turf maintenance
with minimal operator effort and outstanding coverage.
Built from reinforced tubular steel and equipped with ribbed cast-iron gear cases,
the mower guarantees exceptional durability under rigorous conditions.
Its floating cutting units follow ground contours seamlessly, ensuring an even, scissor-like finish that promotes healthy turf growth and a lush, uniform appearance.
Key Features & Advantages
- ✅ Professional Turf Finish – Precision-engineered 5-blade reels (optional 6/8/10 blades) ensure a fine, consistent cut.
- ✅ Efficient Productivity – 3-unit configuration provides a cutting width of 200 cm (6.5 ft), covering up to 5.2 acres/hour.
- ✅ Heavy-Duty Build – Reinforced tubular steel frame and cast-iron gearboxes ensure long operational life.
- ✅ Easy Height Adjustment – Tool-free cutting height settings from ½” to 3½” (1.27 – 8.9 cm).
- ✅ Low Maintenance System – Grease-lubricated bearings and oil-bath gear drive for reduced upkeep.
- ✅ Terrain-Adaptive Design – Floating suspension automatically adjusts to uneven ground surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Liberal’s 3-Unit Gang Reel Mower |
| Cutting Width | 200 cm (6.5 ft) |
| Cutting Capacity | 5.2 acres/hour @ 8.8 km/h |
| Cutting Height Range | ½” – 3½” (1.27 cm – 8.9 cm) |
| Reel Width (Per Unit) | 66 cm (2 ft 2 in) |
| Blades Per Reel | 5 (Optional 6/8/10) |
| Frame Material | Reinforced Tubular Steel |
| Gear Cases | Ribbed Cast Iron with Oil Bath |
| Transmission | Hardened Steel Gear Drive |
| Suspension | Floating Cutting Units |
| Weight (3-Unit Set) | ~600 kg |
| Warranty | 1-Year Limited |
Ideal Applications
- Golf & Polo Fields
- Cricket & Football Grounds
- Public Parks & University Campuses
- Government Turf Projects
- Industrial & Agricultural Estates
Shipping & Logistics
| Parameter | Details |
|---|---|
| Weight | 600 kg (Gross) |
| Dimensions (L × W × H) | 320 cm × 130 cm × 115 cm |
| Shipping Class | Heavy Machinery Freight |
| Packaging Type | Steel-framed crate with protective wrapping |
🟩 FAQs
Q1: What tractor horsepower is required to operate the 3-unit gang mower?
A1: A 25–40 HP tractor is recommended for efficient towing and smooth operation across sports turf or grass areas.
Q2: Can it be used for both cricket and golf grounds?
A2: Yes. The floating reel design adapts to both fine and semi-fine turf, delivering uniform cutting for golf, polo, and cricket fields.
Q3: What maintenance does the mower require?
A3: Minimal. The mower uses grease-lubricated bearings and oil-bath gears to extend service intervals and reduce downtime.
Q4: What differentiates Local and Premium quality models?
A4: The Premium variant includes reinforced deck plates, imported precision blades, and upgraded bearing assemblies for extended durability.
Q5: Does Liberal offer after-sales support and spares?
A5: Yes. Full nationwide after-sales support and spare parts are available through our authorized dealer network and factory service center.
Q6: Can the mower be customized for export or field-specific needs?
A6: Absolutely. Liberal provides custom blade configurations, color finishes, and optional accessories for both local and international projects.
