Transform Your Turf with Professional Deep-Tine Aeration

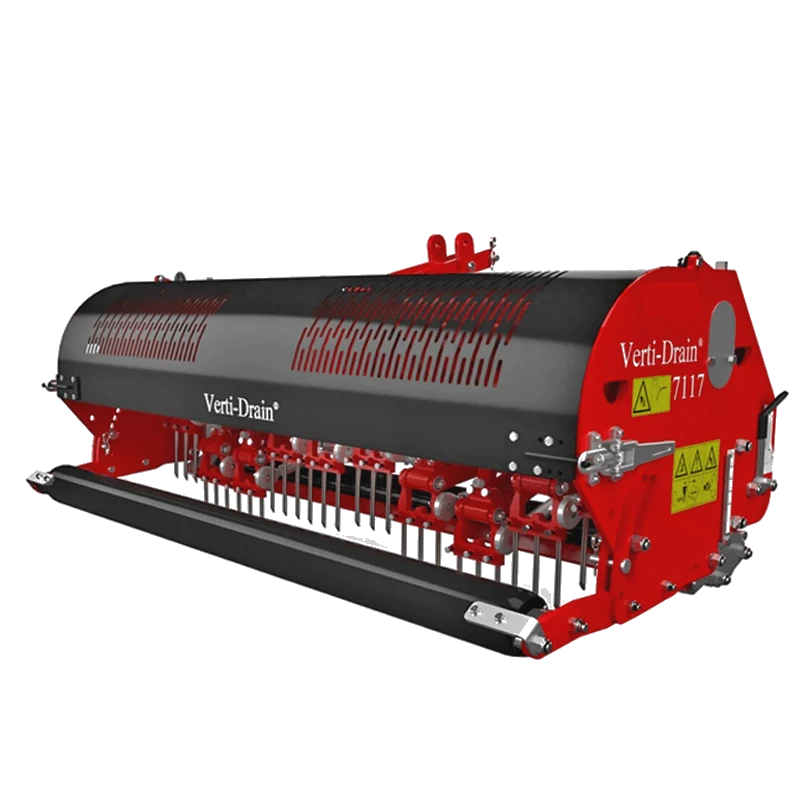

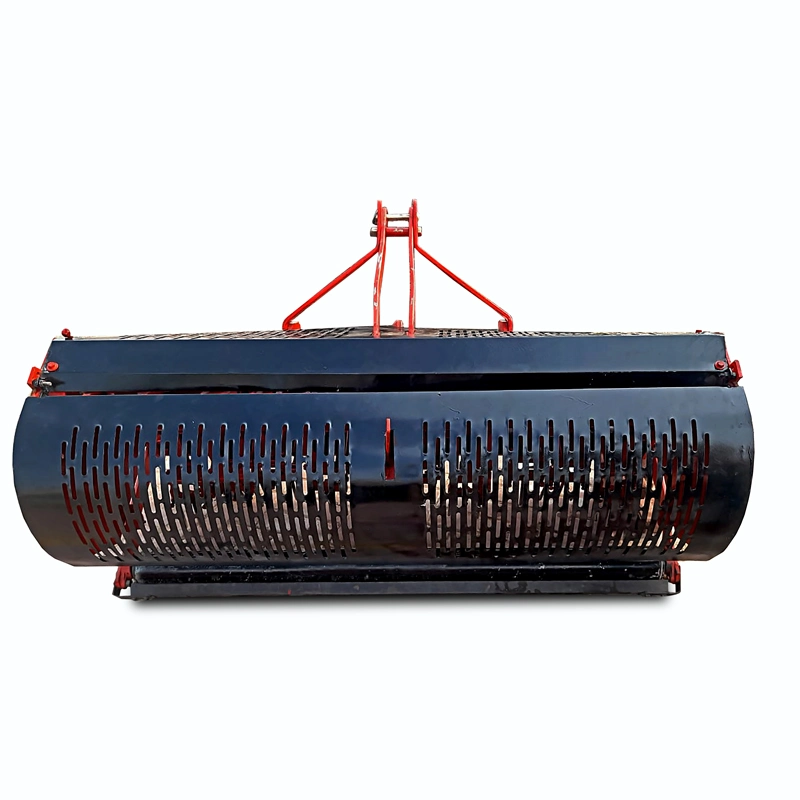

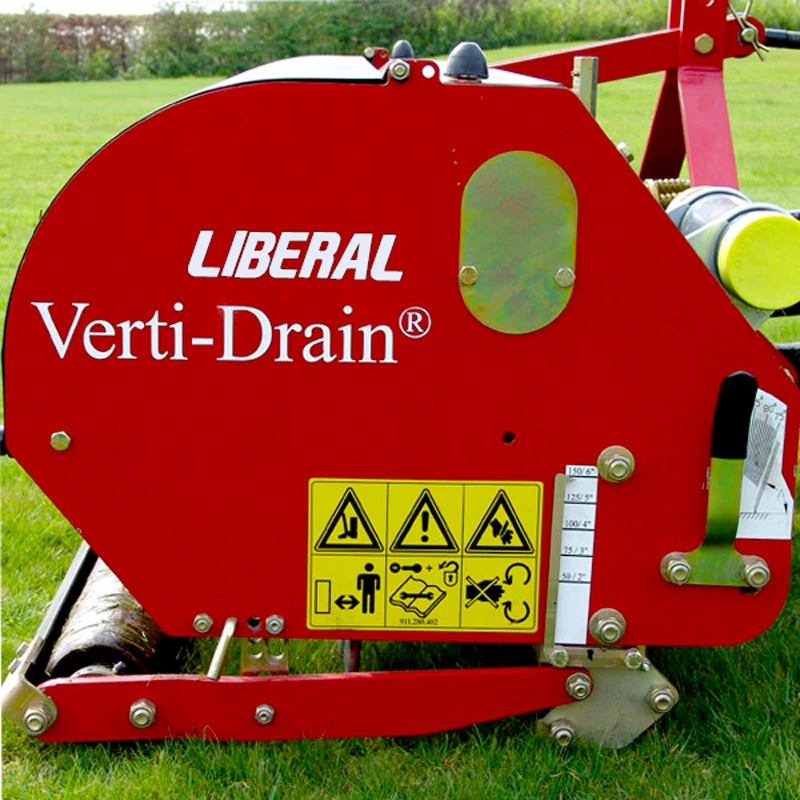

Introducing the Liberal Verti-Drain 7117 – Pakistan’s premier turf aeration solution engineered for groundskeepers, golf course superintendents, and sports turf professionals who demand exceptional results.

This compact, high-performance spike coring machine delivers powerful deep-tine aeration through tractor PTO operation, making it the go-to choice for maintaining championship-quality greens, tees, approaches, and sports pitches across Pakistan.

The Science of Superior Turf Health

Soil compaction is the silent enemy of healthy turf. Heavy foot traffic, maintenance equipment, and natural settling compress soil particles, restricting the movement of air, water, and nutrients to grass roots. The result? Weak turf, poor drainage, disease susceptibility, and patchy growth.

The Verti-Drain 7117 solves this problem with precision-engineered deep-tine technology that:

• Penetrates deep – Creates uniform holes up to 150mm (6 inches) into compacted soil
• Lifts and shatters – Unique heaving action fractures compacted layers without destroying the surface
• Improves percolation – Opens channels for water, air, and fertilizer to reach root zones
• Stimulates root growth – Encourages deeper, healthier root development for resilient turf

Built for Pakistani Conditions

From the clay-heavy soils of Punjab to the sandy grounds of Karachi, the Verti-Drain 7117 adapts to diverse ground conditions with adjustable hole spacing (25-125mm) and versatile tine options. Whether you’re managing a premier golf course, international cricket ground, or municipal sports complex, this machine delivers consistent, professional results.

Key Performance Features

⚡ High-Output Productivity

Cover up to 3,900 m² per hour at 65mm spacing with working speeds reaching 2.75 mph. Complete large areas quickly without compromising aeration quality – essential for facilities with tight maintenance windows.

🔧 Versatile Tine System

Choose between solid tines for decompaction or hollow tines for core extraction. The simple tine design allows fast, cost-effective replacement – no specialized tools required. Swap configurations in minutes to match soil conditions and treatment goals.

🎯 Precision Depth Control

Adjustable penetration up to 150mm (6 inches) lets you target specific compaction layers. Shallow passes for regular maintenance or deep treatments for severe compaction – you control the intensity.

🛡️ Minimal Surface Disruption

The optional Turf Hold Down Kit ensures the grass surface remains intact during aeration. Critical for facilities requiring immediate playability after treatment – no waiting for turf recovery.

🔩 Low-Maintenance Engineering

Sealed bearings eliminate regular greasing and reduce downtime. Robust construction handles demanding schedules season after season with minimal servicing requirements.

Technical Specifications

Model	Verti-Drain 7117
Working Width	68 inches / 1.7 meters
Maximum Depth	150mm / 6 inches
Hole Spacing	25mm – 125mm (adjustable)
Maximum Capacity	3,900 m²/hr (at 65mm spacing)
Working Speed	Up to 2.75 mph / 4.4 km/h
Weight	631 kg
Power Source	Tractor PTO driven
Tractor Requirement	Minimum 28 HP
Hitch Type	3-point CAT 1
Tine Options	Solid tines / Hollow tines
Bearings	Sealed (maintenance-free)

Ideal Applications

Facility Type	Application Areas
Golf Courses	Greens, tees, fairways, approaches
Cricket Grounds	Outfields, practice areas, pitches surrounds
Football/Soccer Fields	Full pitch aeration, goal mouth recovery
Rugby & Hockey Pitches	High-traffic zone treatment
Municipal Parks	Public green spaces, recreational areas
Polo Grounds	Field maintenance, divot recovery areas
Landscaping Projects	New turf establishment, lawn renovation

What’s Included

• Verti-Drain 7117 main unit
• Standard solid tine set
•  Operator manual
• 3-point hitch connection hardware
• PTO shaft

Optional Accessories

• Turf Hold Down Kit
• Hollow tine set (various diameters)
• Replacement tine packs
• Transport wheels

Why Choose Liberal Verti-Drain?

• Proven Technology – Trusted by turf professionals worldwide
• Local Support – Parts, service, and technical assistance in Pakistan
• Training Available – Operator training for your grounds team
• Spare Parts Stock – Tines and components readily available
• Flexible Financing – Payment plans for institutions

Recommended Maintenance Schedule

Interval	Task
Before each use	Check tine condition, inspect PTO shaft
Every 25 hours	Check bolt torque, clean debris
Every 100 hours	Inspect bearings, check hydraulic connections
Annually	Full service inspection, replace worn tines

📞 Need Help Choosing? Contact our turf equipment specialists for personalized recommendations based on your facility size, soil conditions, and maintenance goals.
