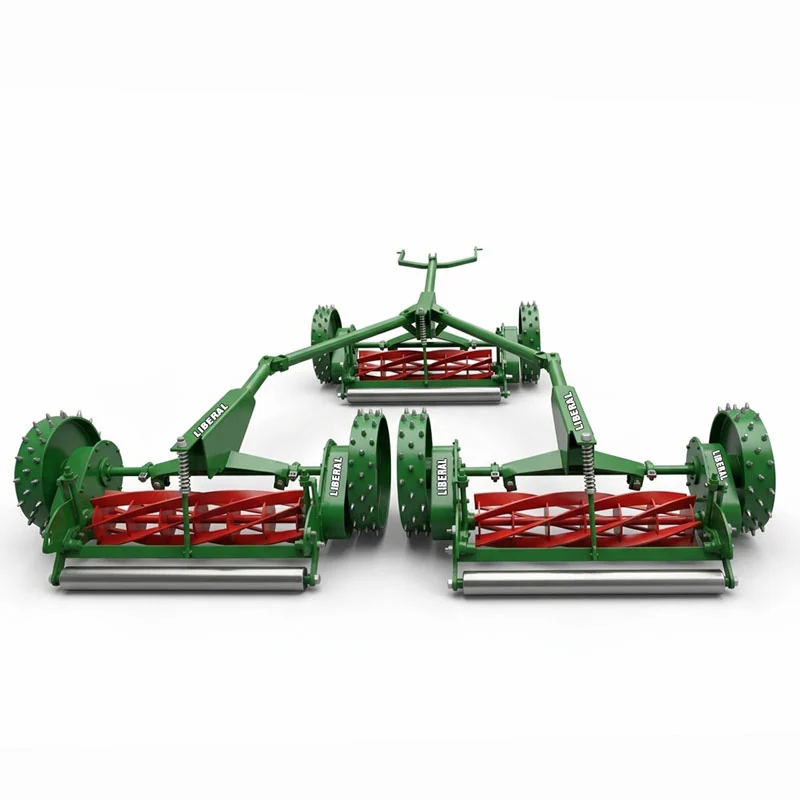

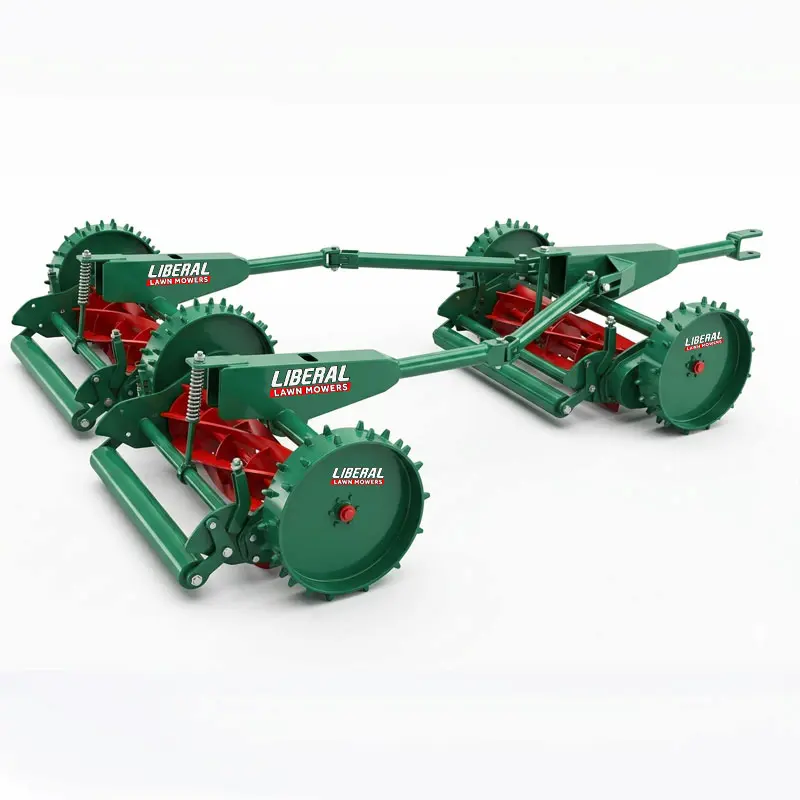

3 Unit Gang Lawn Mower with Spike Wheels – Tractor Trailed Cylinder Mower

Manufactured by Liberal Lawn Mowers, the 3 Unit Gang Lawn Mower is a professional tractor-trailed cylinder mower designed for efficient maintenance of large natural turf areas. Three independently mounted cutting units follow ground contours to provide a consistent, even cut while reducing the time required to mow extensive lawns and sports grounds.

Heavy-duty spike wheels provide positive ground drive and reliable traction in both dry and damp conditions. With a cutting width of approximately 84–90 inches (2130–2285 mm), this gang mower is suitable for cricket grounds, golf courses, football fields, polo clubs, parks, universities, racecourses, and commercial landscapes.

Key Features

• Three independently floating cylinder cutting units
• Heavy-duty steel spike wheels for excellent traction
• Precision cylinder cutting for a clean, professional finish
• Heat-treated high-carbon steel cutting blades
• Ground-driven cutting system
• Heavy-duty welded steel chassis
• Adjustable cutting height from 10–50 mm
• Tractor-trailed drawbar design
• Corrosion-resistant powder-coated finish
• Low-maintenance mechanical design
• Designed to follow flat and undulating natural turf
• Suitable for regular commercial and institutional use

Technical Specifications

Specification	Details
Model	LLM-GM3-SP
Product Type	3 Unit Tractor-Trailed Gang Lawn Mower
Number of Cutting Units	3
Wheel Type	Heavy-Duty Spike Wheels
Cutting Width	Approx. 84–90 inches (2130–2285 mm)
Cutting Height	10–50 mm, Adjustable
Cutting System	Precision Cylinder Reel
Blade Material	Heat-Treated High-Carbon Steel
Frame Construction	Heavy-Duty Mild Steel
Finish	Industrial Powder Coating
Drive System	Ground Driven
Hitch Type	Tractor Drawbar
Recommended Tractor Power	20–35 HP
Terrain	Flat and Undulating Natural Turf
Country of Manufacture	Pakistan

Applications

The Liberal 3 Unit Gang Lawn Mower is designed for maintaining large natural turf areas where mowing productivity and consistent cutting quality are important.

• Cricket grounds and outfields
• Golf courses and fairways
• Football grounds and sports fields
• Polo clubs and polo grounds
• Racecourses
• Universities and educational campuses
• Public parks and municipal green areas
• Sports complexes
• Hotels and resorts
• Large residential estates
• Commercial landscaping projects

Efficient Tractor-Trailed Turf Mowing

The three-cylinder configuration provides significantly greater mowing coverage than a conventional single-unit mower. Each cutting unit is independently mounted to help follow changes in ground level and maintain consistent contact with the turf.

The ground-driven cutting system uses the mower’s spike wheels to drive the cutting units, eliminating the need for a separate engine or PTO-driven cutting mechanism. This mechanical configuration can help simplify operation and routine maintenance.

Built for Professional Turf Maintenance

The heavy-duty steel frame, high-carbon steel cutting blades, spike wheels, and powder-coated finish are designed for demanding commercial and institutional applications. The mower is particularly suited to organizations responsible for maintaining large areas of natural grass on a regular basis.

Why Choose Liberal Lawn Mowers?

For more than 70 years, Liberal Lawn Mowers has manufactured lawn mowers and turf maintenance equipment for customers in Pakistan. Our equipment is designed around practical field requirements, durability, serviceability, and local operating conditions.

• Professional turf maintenance equipment
• Heavy-duty manufacturing
• Precision cutting systems
• Low-maintenance mechanical design
• Local spare parts availability
• Factory-direct pricing
• Nationwide delivery across Pakistan
• Technical after-sales support

Product Attributes

Attribute	Value
Brand	Liberal Lawn Mowers
Power Source	Tractor Driven
Mower Type	Gang Cylinder Mower
Cutting Units	3
Wheel Type	Heavy-Duty Spike Wheels
Drive Type	Ground Driven
Application	Sports Ground and Commercial Turf Maintenance
Material	Heavy-Duty Steel
Finish	Powder Coated
Country of Origin	Pakistan

Frequently Asked Questions

What is a 3 Unit Gang Lawn Mower?

A 3 Unit Gang Lawn Mower uses three cylinder cutting units mounted behind a tractor to cover a wider area in a single pass. This makes it suitable for efficient mowing of large natural turf areas.

What is the cutting width of the 3 Unit Gang Lawn Mower?

The approximate working width is 84–90 inches (2130–2285 mm), depending on the machine configuration.

What tractor is required?

A tractor rated between 20 and 35 HP is recommended for normal operation.

How does the cutting system work?

The mower uses a ground-driven cylinder cutting system. The heavy-duty spike wheels provide traction and drive the cutting units as the mower is pulled by the tractor.

Is the mower suitable for cricket grounds?

Yes. The three-cylinder configuration is suitable for maintaining large natural turf areas such as cricket outfields, sports grounds, parks, golf areas, and other professionally maintained grass surfaces.

Does it include spike wheels?

Yes. The standard configuration includes heavy-duty spike wheels designed to provide traction and ground-driven operation.

Package Includes

• 3 Unit Gang Lawn Mower
• Heavy-Duty Drawbar Assembly
• Spike Wheel Set
• Operator Manual
• Basic Tool Kit

Warranty

12 Months Manufacturing Warranty against manufacturing defects, subject to the applicable warranty terms and conditions.

Request Pricing for the 3 Unit Gang Lawn Mower

Looking for a 3 Unit Gang Lawn Mower in Pakistan for a cricket ground, golf course, sports facility, municipality, university, or commercial landscaping operation? Contact Liberal Lawn Mowers for current pricing, availability, delivery information, and technical specifications.
