Liberal Electronic Cricket Sight Screen
The Liberal Electronic Cricket Sight Screen is a professional sight screen system designed for cricket stadiums, professional grounds, cricket clubs, academies, and institutional sports facilities.
Based on a 3V prism display system, the sight screen uses detachable aluminium extruded prisms operated through a manual or motorized mechanism. The system provides a practical visual background for batsmen while also offering an effective platform for sponsorship, branding, and advertising displays.
3V Prism Display Technology

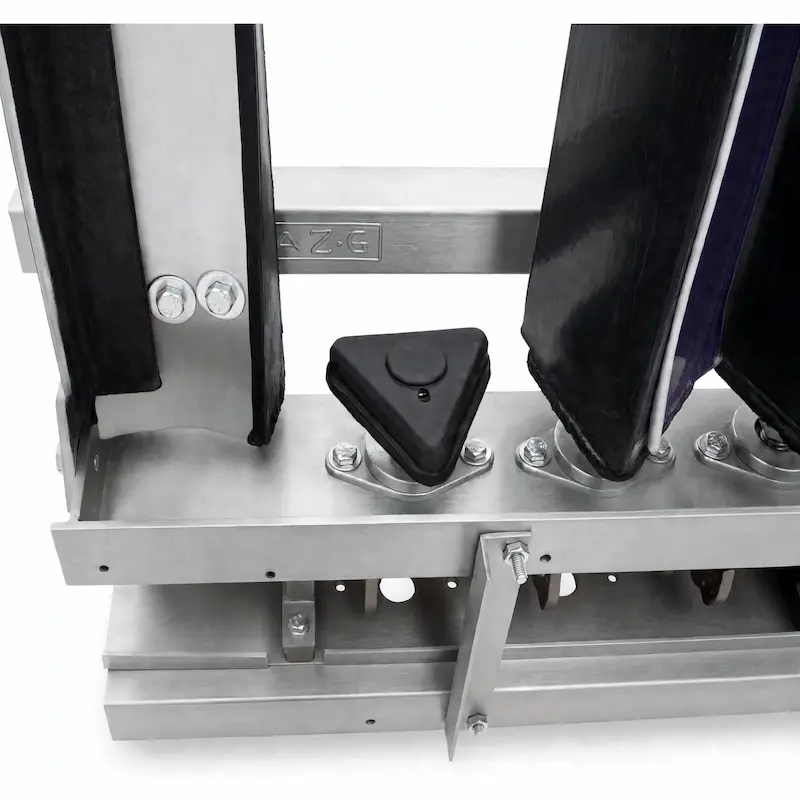

The sight screen incorporates detachable 100 mm aluminium extruded prisms, manufactured in approximately 12 ft lengths. The prism assembly can be operated through manual or motorized mechanisms, allowing the display configuration to be changed according to operational requirements.
The motorized mechanism provides controlled movement of the prism assembly and is designed for cricket-ground applications where convenient operation and efficient display changes are required.
Designed for Professional Cricket Grounds

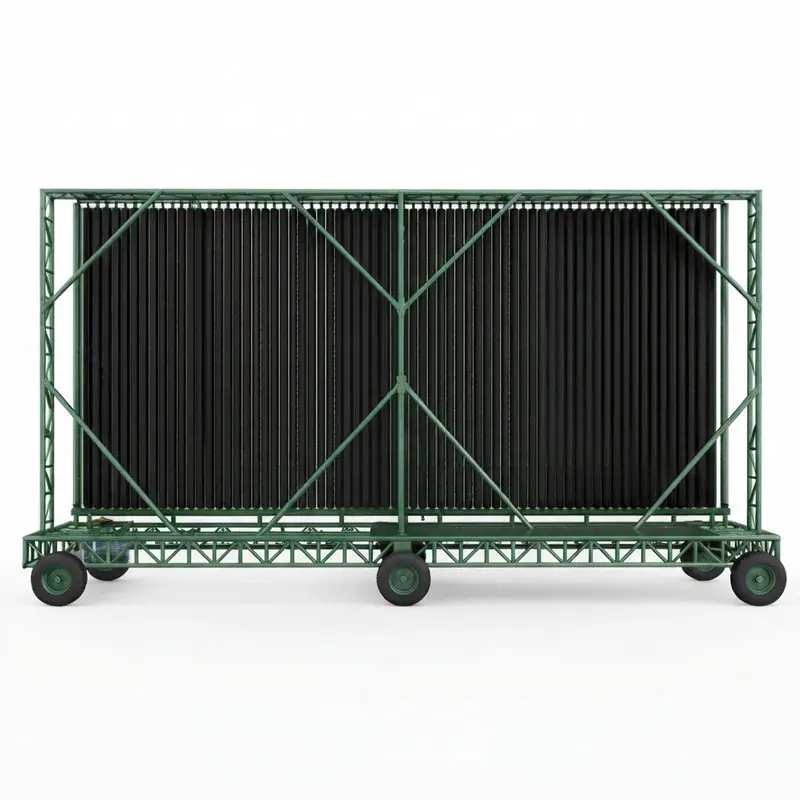

With an overall dimension of approximately 24 ft long × 12 ft high × 5 ft wide, the Liberal Electronic Cricket Sight Screen provides a substantial visual background for professional cricket environments.
It is suitable for:
- International cricket grounds
- Cricket stadiums
- Professional cricket clubs
- Cricket academies
- Sports complexes
- Institutional cricket grounds
- School and university sports facilities
- Corporate cricket facilities
- Sponsored cricket events
- Tournament and match venues
Advertising & Sponsorship Capability
In addition to its primary cricketing function, the 3V prism configuration provides opportunities for sponsorship and advertising applications.
The display can be used for sponsor branding, commercial advertising, event promotions, and venue-specific visual content. This makes the system suitable for cricket venues where both player visibility and advertising presentation are important considerations.

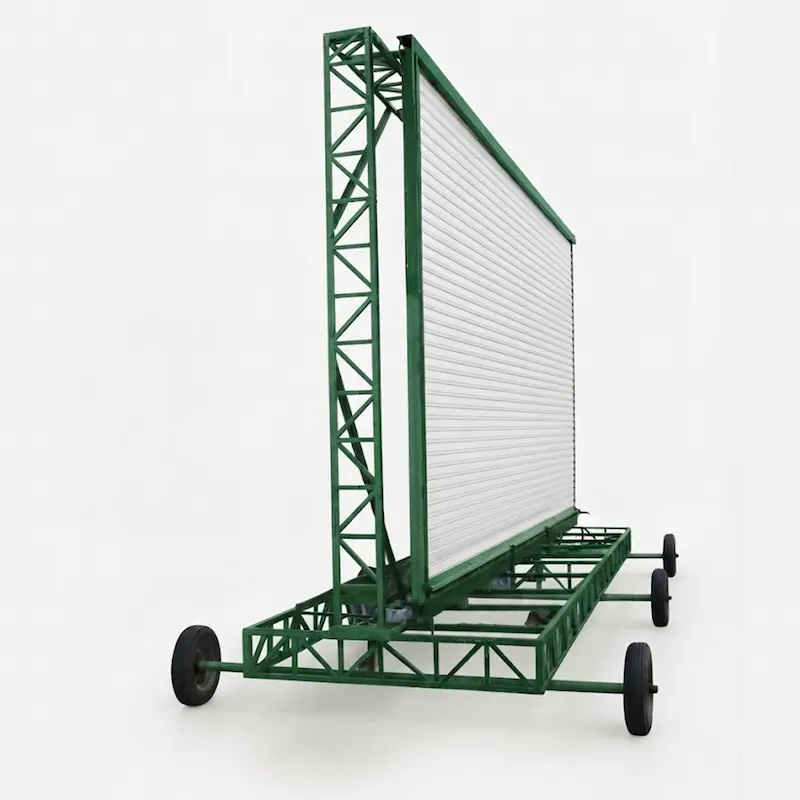

Heavy-Duty Mobile Construction
The sight screen is equipped with four air-tube wheels with rims, providing a mobile configuration for positioning and handling around the cricket ground.
Its approximately 5 ft overall width provides a substantial structural footprint while allowing the unit to be positioned according to the requirements of the playing area.

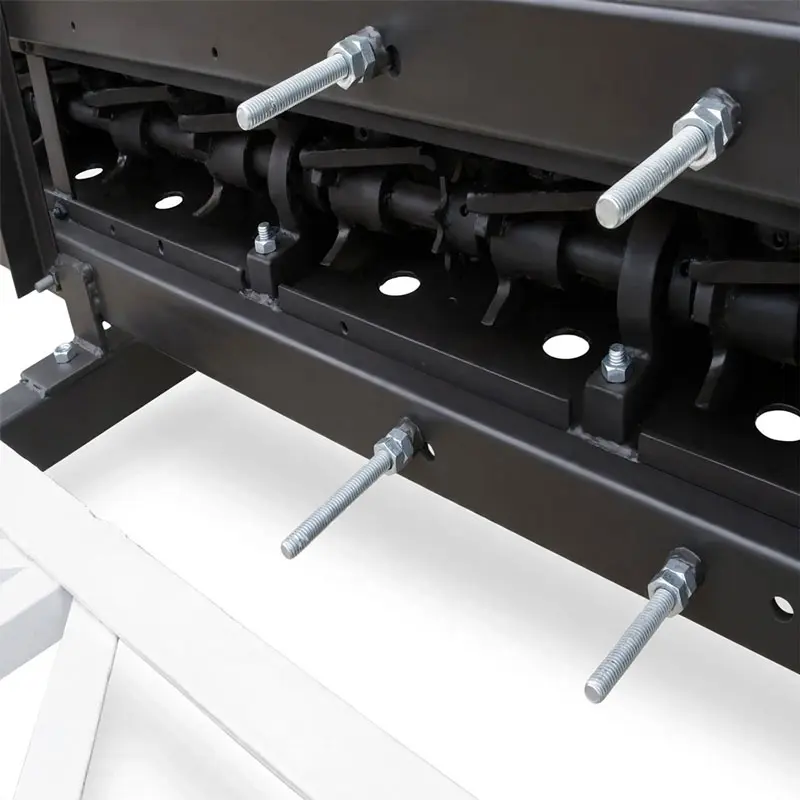

Manual & Motorized Operation
The system incorporates a wave-technology-based mechanism supporting both manual and motorized operation.
The motorized configuration provides convenient operation for professional venues, while the manual operating capability provides an alternative method for operational requirements and maintenance.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Electronic Cricket Sight Screen |
| Display System | 3V Prism Display |
| Overall Length | 24 ft |
| Overall Height | 12 ft |
| Overall Width | 5 ft |
| Prism Type | Detachable Aluminium Extruded Prism |
| Prism Size | 100 mm |
| Prism Length | Approximately 12 ft |
| Operation | Manual & Motorized |
| Mechanism | Wave-Technology-Based Assembly |
| Wheels | 4 Wheels |
| Wheel Type | Air-Tube Wheels with Rims |
| Application | Cricket Grounds, Stadiums & Sports Facilities |
| Advertising | Suitable for Sponsorship & Advertising |
| Delivery Time | Approximately 6–8 Weeks |
| Installation | Delivery & Installation Available |
